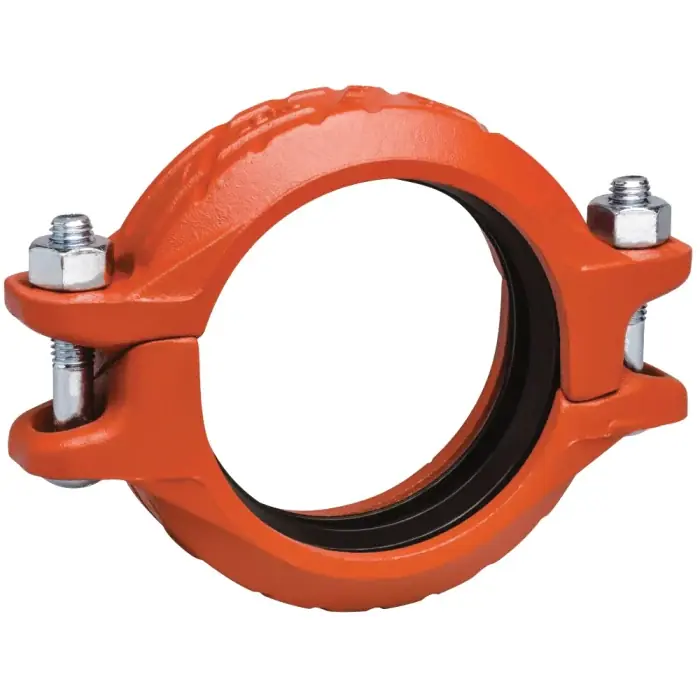

Victaulic L012007PE0 Zero-Flex 07 Orange Enamel Ductile Iron Grooved Rigid Coupling with Grade E EPDM Gasket 1-1/4 in Crafted

The Victaulic L012007PE0 is a zero-flex grooved rigid coupling made of ductile iron. It features a grade E EPDM gasket and is designed for a connection size of one and one-quarter inches. This coupling accommodates pressure from full vacuum up to seven hundred fifty psi, making it a reliable choice for various piping applications.

• Accommodates pressures from vacuum to 750 psi
• Constructed from ductile iron with an orange enamel finish
• Meets ASME B31.1 and NFPA 13 standards

Product Highlights

This coupling provides strong support and meets industry standards, ensuring safe and effective use in piping systems.

Product Information

Standard Information

• Brand: Victaulic
• Sub Brand: Zero-Flex

Technical Specifications

• Connection Size: 1-1/4 in
• Finish: Orange Enamel
• Item Name: Grooved Rigid Coupling with Grade E EPDM Gasket
• Length: 4.62 in
• Material Specifications: ASTM A536, Grade 65-45-12
• Material: Ductile Iron
• Maximum End Load: 1620 lb
• Model: 07
• Outside Diameter: 1.66 in
• Pressure Rating: 750 psi
• Temperature Rating: -30 to 230 deg F
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved, ASME B31.1, B31.9, NFPA 13
• Applications: For use with OGS roll grooved pipe, cut grooved pipe, valves, fittings, and accessories
