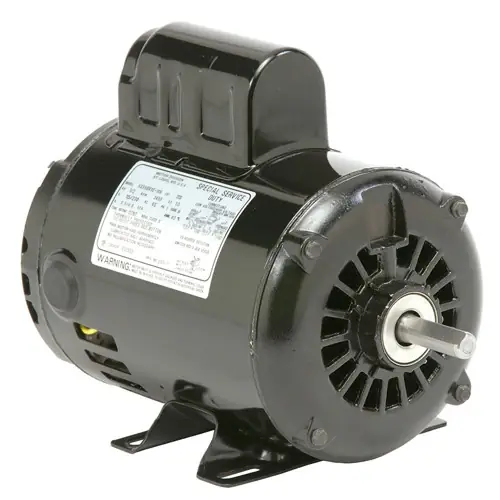

U.S. Motors D13CP2P General Purpose Single Phase ODP Rigid Base Motor Clearance
Home / General Purpose Motors / U.S. Motors D13CP2P General Purpose Single Phase ODP Rigid Base Motor Clearance

U.S. Motors D13CP2P General Purpose Single Phase ODP Rigid Base Motor Clearance

Original price was: $427.59.Current price is: $171.04.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0294608 Category: Tag:
Share

The U.S. Motors D13CP2P is a general-purpose single-phase motor. This motor is designed for various applications requiring reliable performance and efficiency.

  • 1/3 horsepower
  • Features rigid base mounting
  • Operating at 1800 rpm with ODP enclosure

Product Highlights

This motor is suitable for HVAC systems, fans, and pumps, ensuring optimal operation across multiple environments.

Product Information

Standard Information

  • Brand: U.S. Motors
  • Part Number: 112855269

Technical Specifications

  • Enclosure Designation: ODP – Open Drip Proof
  • Insulation Class: B
  • Frequency: 50/60 Hz
  • Full Load RPM: 1425 rpm, 1725 rpm
  • Voltage Rating: 115/230 & 110/220
  • Motor Application: General Purpose
  • C Dimension: 9.87 inches
  • Mounting Type: Rigid Base
  • Duty Type: Continuous Duty
  • Poles: 4
  • Full Load Efficiency: 72.4%
  • Service Factor: 1.35
  • Full Load Amps: 3.9/1.9 & 4.8/2.5
  • Weight: 16.24 pounds
  • Frame Size: 56
