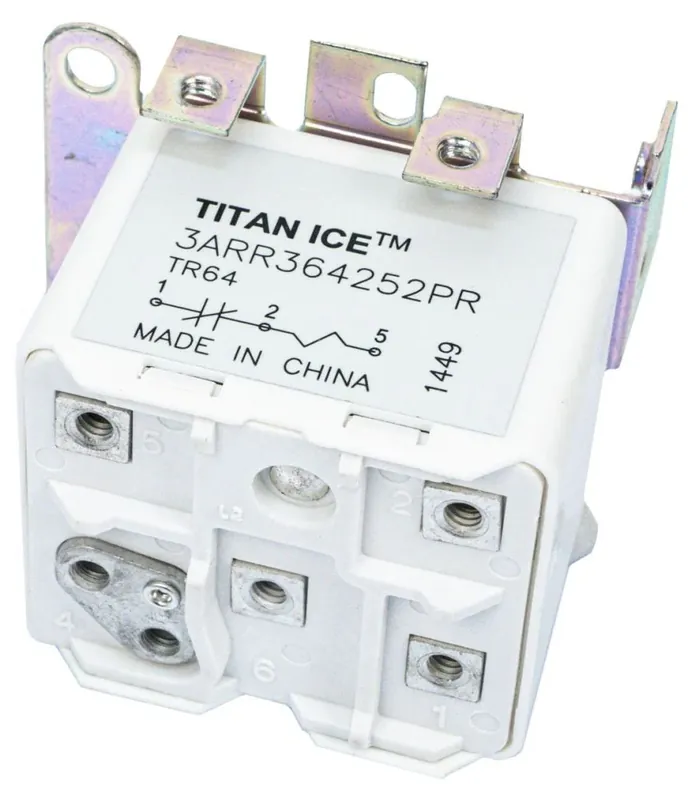

Top Rated Titan Ice TR64 Potential Relay – 395 Coil Voltage – GE Replacement

The Titan Ice TR64 is a potential relay with a coil voltage of three hundred ninety-five volts. It is designed for use in various applications including central air conditioning compressors and submersible pump motors. The relay supports a contact current rating of thirty-five amps and has a voltage rating of two hundred fifty-seven to two hundred seventy-eight volts for pick-up, and one hundred twenty-three volts for drop-out. This relay is suitable for motors generally over one-third horsepower with start capacitors.

• Terminal Type: Six quick connect terminals and #8-32 TPI screw
• UL approved in Canada and the US
• Endurance rated for up to five hundred thousand operations depending on load

Product Highlights

This relay offers reliability for various motor applications in HVAC systems.

Product Information

Standard Information

• Manufacturer: Titan Ice
• UPC: 84089911232

Technical Specifications

• Coil Voltage: 395 Volt
• Contact Current Rating: 35 Amp
• Pick-Up Voltage Rating: 257 to 278 Volt
• Drop-Out Voltage Rating: 123 Volt
• Terminal Type: (6) Quick Connect and #8-32 TPI Screw
• Approval: UL (Canada and US)
