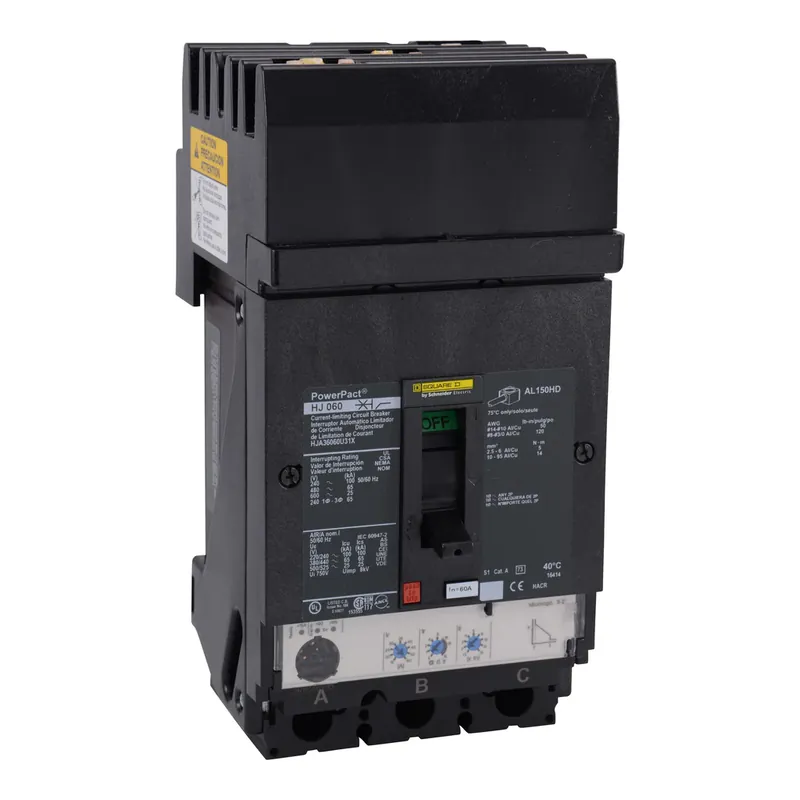

Square D HJA36060U31X Circuit breaker, P 60A 3 Pole Cheap

Square D HJA36060U31X circuit breaker is designed to protect electrical systems from damage due to overloads and short circuits. This circuit breaker uses Micrologic Standard with a trip unit rated at 3.2, providing an LI function and breaking capacity of twenty-five kiloamperes at six hundred volts AC. The breaker features dual-break rotating contacts that limit peak current during faults.

• Three pole design with an interrupt rating of twenty-five kiloamperes
• Suitable for I-Line applications with easy installation
• Meets UL, CSA, IEC, and other safety standards

Product Highlights

This device is suited for a variety of applications, ensuring reliable protection with a continuous current rating of eighty percent when using an ABC phase connection. It can handle a storage temperature range from negative fifty to eighty-five degrees Celsius.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: HJA36060U31X
• Voltage: 600 Volt
• Amperage: 60 Amp
• Number of Poles: 3 Pole
• Breaking Capacity: 25 kA
• Frame: J
• Dimensions: 4.5 inches width, 3.39 inches depth
• Certifications: CSA, UL, NOM
