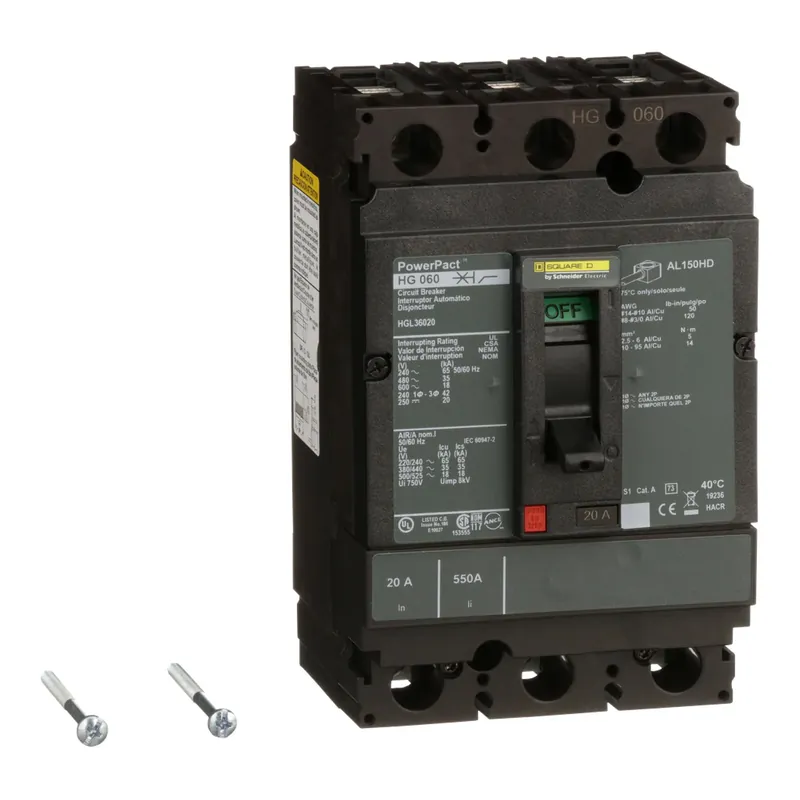

Square D HGL36020 SQD HGL36020 Circuit Breaker Power Hot Deal

The Square D HGL36020 is a circuit breaker designed to safeguard electrical systems from overloads and short circuits. This device features thermal magnetic trip protection and is rated for a breaking capacity of 18kA at 600VAC. The HGL36020 includes dual-break rotating contacts to limit peak current during faults.

• Configured for thermal magnetic protection
• Continuous current rating of 80%
• Constructed in a three-pole unit mount

Product Highlights

This PowerPacT H circuit breaker is compliant with UL, CSA, NOM, and IEC standards. The integrated push-to-trip button allows for manual tripping of the breaker. It is suitable for various applications requiring overload and short circuit protection.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Square-D / Schneider

Technical Specifications

• Type: Circuit breaker
• Voltage: 250 Volt
• Amperage: 20 Amp
• Frame: H-FRAME
• Width: 4.09 inches
• Height: 6.42 inches
• Depth: 3.39 inches
• Number of Poles: 3 Pole
• Interrupt Rating: 18 kAIC
• Country of Origin: Mexico
• Warranty Length: 18 months
