Schneider Electric XB4BS8442 Trigger Action Turn to Release Emergency Stop Button New Arrival

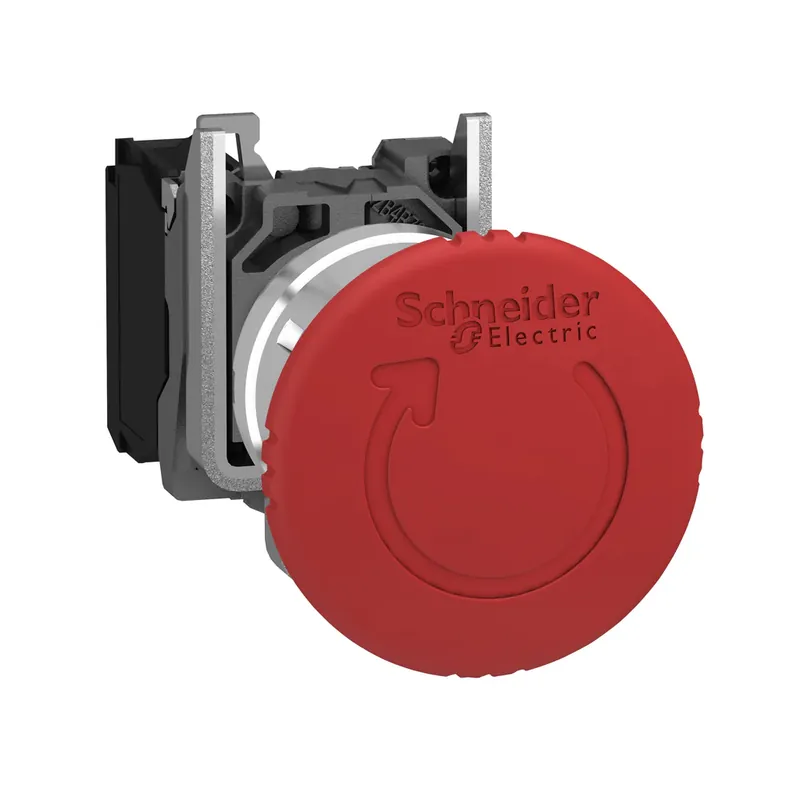

The Schneider Electric XB4BS8442 is a trigger action emergency stop button that features a red mushroom head design with a diameter of forty millimeters. This modular push button operates with a latched turn to release mechanism. The button has a metal bezel for durability and is suitable for installation into standard twenty-two millimeter cut-outs using simple screw-clamp connections. It is designed for visibility at a distance due to its prominent shape and color.

• Latched turn to release mechanism ensures safe operation.
• IP66 rating for protection against dust and water.
• Easy installation into standard cut-outs.

Product Highlights

The XB4BS8442 is engineered for usage in harsh environments, featuring impact resistance and vibration resistance. Its IP66 rating makes it ideal for various applications, including emergency stop systems on machinery and equipment.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: XB4BS8442
• Dimensions: Width 40 mm, Height 47 mm, Depth 82 mm
• Weight: 0.26 lb (0.118 kg)
• Amperage Rating: 3 Amp at 240 V, AC-15
• Environmental Conditions: NEMA 13 – NEMA 4X
• Country of Origin: Czech Republic
• Protection Rating: IP66
