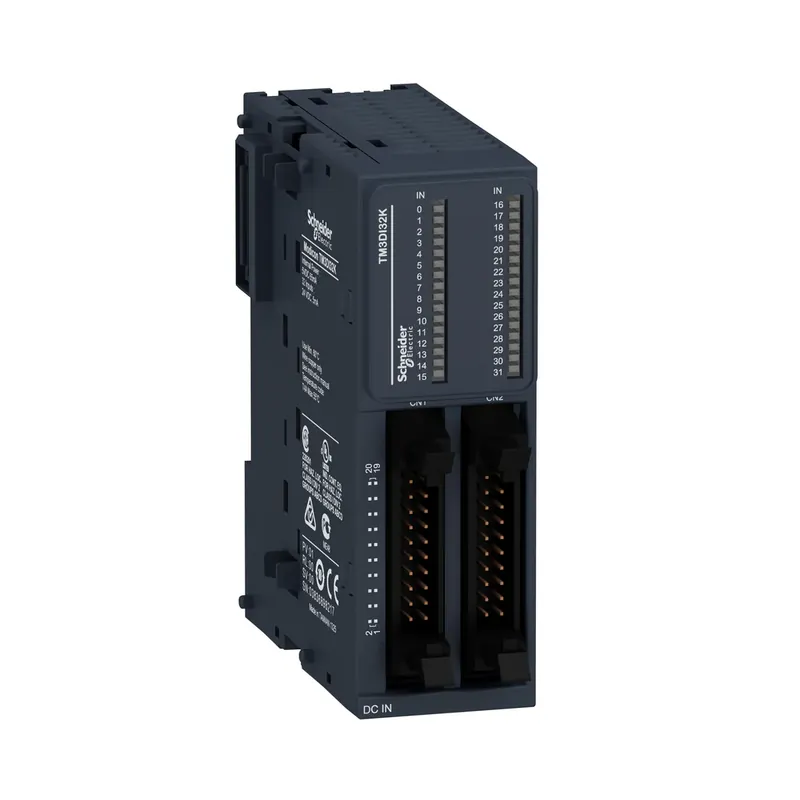

Schneider Electric TM3DI32K Discrete Input Module 32 Inputs HE10 24V DC Luxury

The Schneider Electric TM3DI32K is a discrete input module designed for Modicon controllers. This module includes thirty-two logic inputs and operates on a twenty-four volt direct current. It features a removable HE10 connector and is designed for easy installation on a standard DIN rail.

• Compatible with Modicon M221, M241, M251, and M262 controllers
• Insulation rated at five hundred volts AC between inputs and internal logic
• IP20 rated for environmental protection

Product Highlights

Enhance your automation systems with this reliable input module that supports various Modicon controllers.

Product Information

Standard Information

• Catalog Number: TM3DI32K
• Brand: Schneider Electric

Technical Specifications

• Type: Discrete input module
• Width: 0.93 inches
• Depth: 3.19 inches
• Height: 3.54 inches
• Weight: 0.22 pounds
• Operating Temperature: -10 to 35 degrees C (Vertical), -10 to 55 degrees C (Horizontal)
• Response Time: 4 ms
• Number of Channels: 32
• Power Supply: 24V DC
• Insulation Voltage: 500V AC
