Sale!

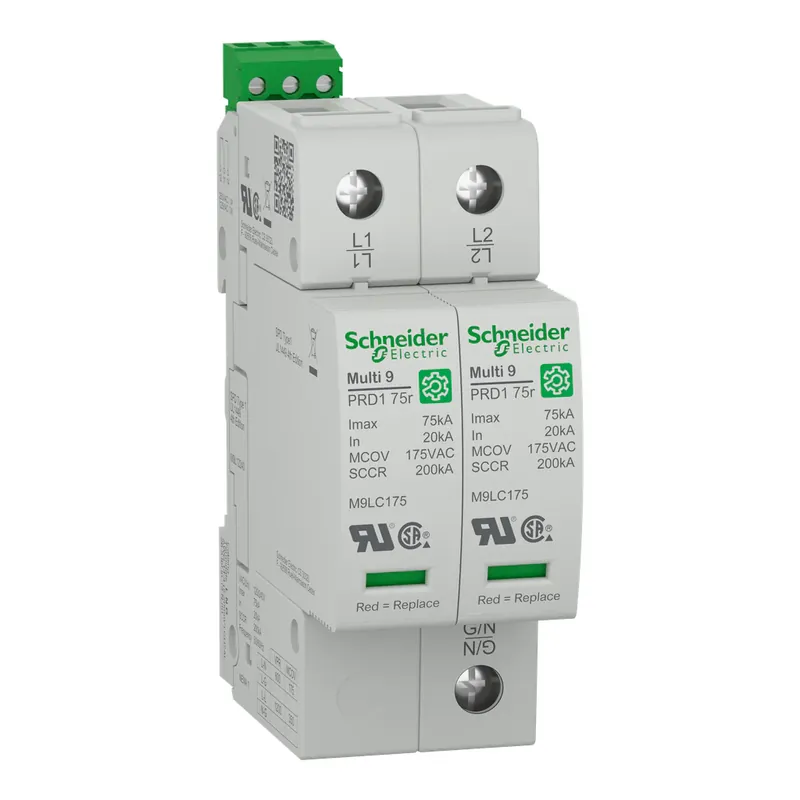

Schneider Electric M9L12240 surge arrester, Multi9 PRD1, type 1 Express Delivery
Home / Circuit Breakers / Schneider Electric M9L12240 surge arrester, Multi9 PRD1, type 1 Express Delivery

Schneider Electric M9L12240 surge arrester, Multi9 PRD1, type 1 Express Delivery

Original price was: $14.99.Current price is: $7.50.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0263138 Category: Tag:
Share

Product Description

Schneider Electric M9L12240 is a surge arrester designed for various power installations. It connects to electrical distribution networks and is suitable for service entrance, branch panels, and control panel environments. This device is classified as type 1 surge arrester. The maximum discharge current, Imax, is 75kA, and it pairs with a 30A and C curve tripping circuit breaker. Its maximum continuous operating voltage is 175VAC in common mode (L/N).

  • Type 1 surge arrester suitable for various installations
  • Maximum discharge current of 75kA
  • Mountable on DIN rail for modular installation

Product Highlights

Schneider Electric M9L12240 provides robust surge protection in electrical systems. Its compact size and easy installation make it ideal for both commercial and industrial applications.

Product Information

Standard Information

  • Catalog Number: M9L12240
  • Manufacturer: Schneider Electric

Technical Specifications

  • Width: 2 pitches of 9mm
  • Height: 91.7 mm
  • Depth: 71.4 mm
  • Operating Temperature: -25 to 60 degrees C
  • Storage Temperature: -40 to 85 degrees C
  • Net Weight: 340 g
  • Maximum Voltage Protection Level: 600V (L/N), 1200V (L/L)
  • Compliance: UL 1449 standard
