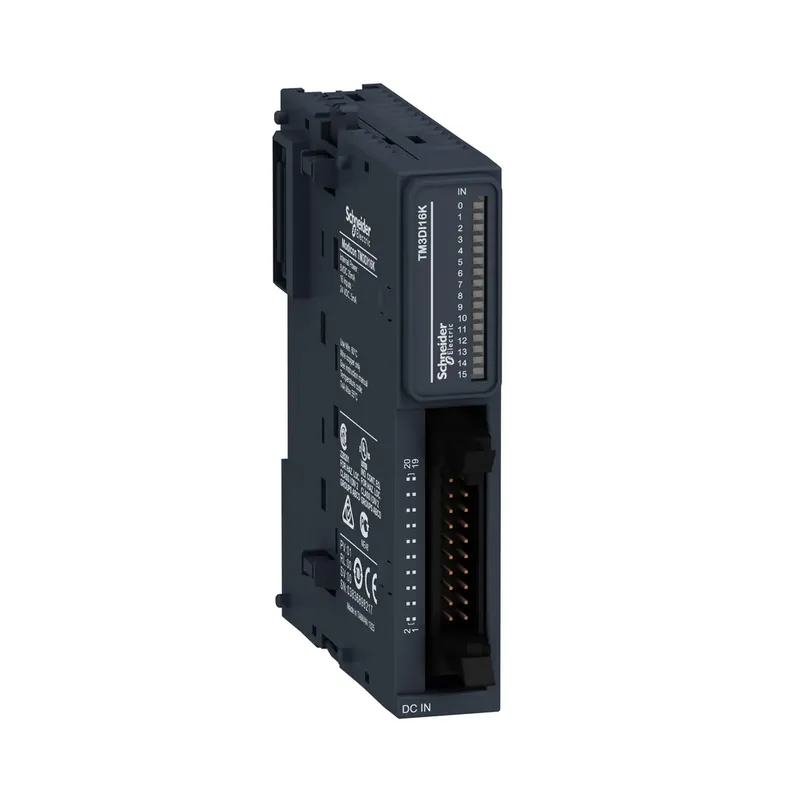

Price Cut Schneider Electric TM3DI16K SQD TM3DI16K Discrete Input Module 24V DC

The Schneider Electric TM3DI16K is a discrete input module designed for Modicon controllers. It features a voltage rating of twenty-four volts DC with sixteen inputs configured for either source or sink logic. This module is suited for applications requiring reliable input signal processing. It is compatible with Modicon M221, M241, M251, and M262 controllers.

• Supports up to sixteen discrete inputs
• Compatible with Modicon logic controllers
• Input voltage of twenty-four volts DC

Product Highlights

The Schneider Electric TM3DI16K provides a robust solution within the Modicon TM3 range, ensuring ease in configuration and installation.

Product Information

Standard Information

• Catalog Number: TM3DI16K
• Manufacturer: Schneider Electric

Technical Specifications

• Input Voltage: 24 V DC
• Input Current: 5 mA / 35 mA at 5 V DC via bus connector
• Number of Inputs: 16
• Response Time: 4 ms
• Operating Temperature: -10 to 35 degrees C Vertical Installation; -10 to 55 degrees C Horizontal Installation
• Enclosure Rating: IP20
• Certification: CE, CULus, C-Tick
• Dimensions: 21.4 mm (Width) x 81.3 mm (Depth) x 90 mm (Height)
• Weight: 0.65 kg
