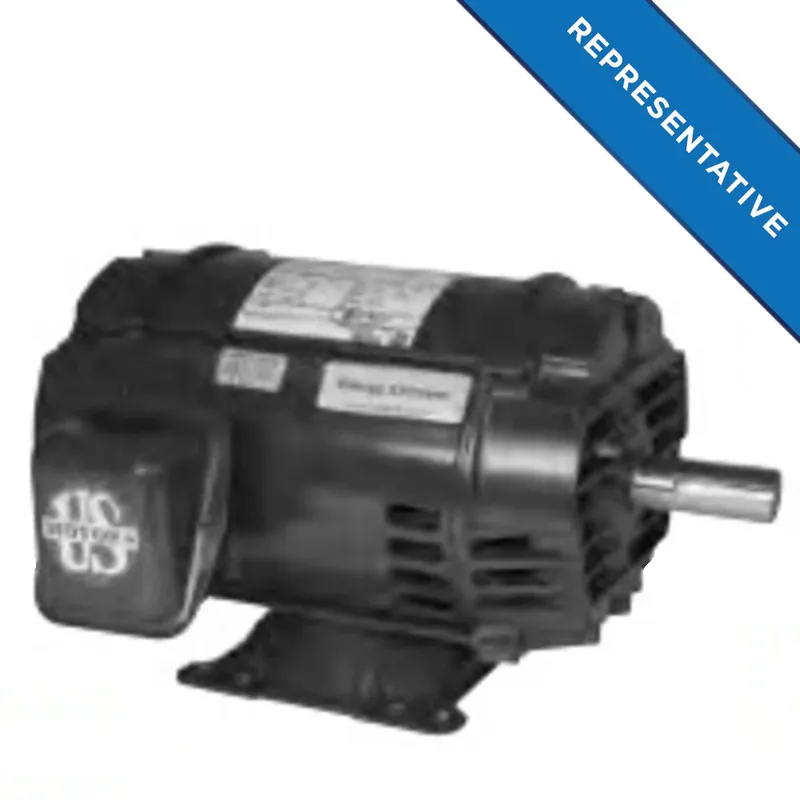

High Quality U.S. Motors D2P3H General Purpose Three Phase ODP Horizontal - Footed Motor
Home / General Purpose Motors / High Quality U.S. Motors D2P3H General Purpose Three Phase ODP Horizontal – Footed Motor

High Quality U.S. Motors D2P3H General Purpose Three Phase ODP Horizontal – Footed Motor

Original price was: $601.86.Current price is: $240.74.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0279414 Category: Tag:
Share

The U.S. Motors D2P3H is a three-phase ODP horizontal-footed motor. It offers a power rating of 2 horsepower with a speed of 1200 rpm, making it suitable for various general-purpose applications. This motor operates at a voltage rating of 200. It has a durable rolled steel frame and is designed for continuous duty.

  • Power: 2 horsepower
  • Speed: 1200 rpm
  • Frame: 184T, Horizontal-Footed Mount

Product Highlights

This motor features an open drip-proof enclosure, ensuring reliable performance in diverse conditions. The robust design allows for effective cooling, which is ideal for applications that require longevity and efficiency.

Product Information

Standard Information

  • Voltage Rating: 200
  • Duty: Continuous

Technical Specifications

  • Full Load Efficiency: 87.5%
  • Poles: 6
  • Service Factor: 1.15
  • Weight: 60.0 LB
  • Insulation Class: F
  • Full Load Amps: 7.3
  • C Dimension: 15 in
  • Enclosure Designation: ODP – Open Drip Proof
