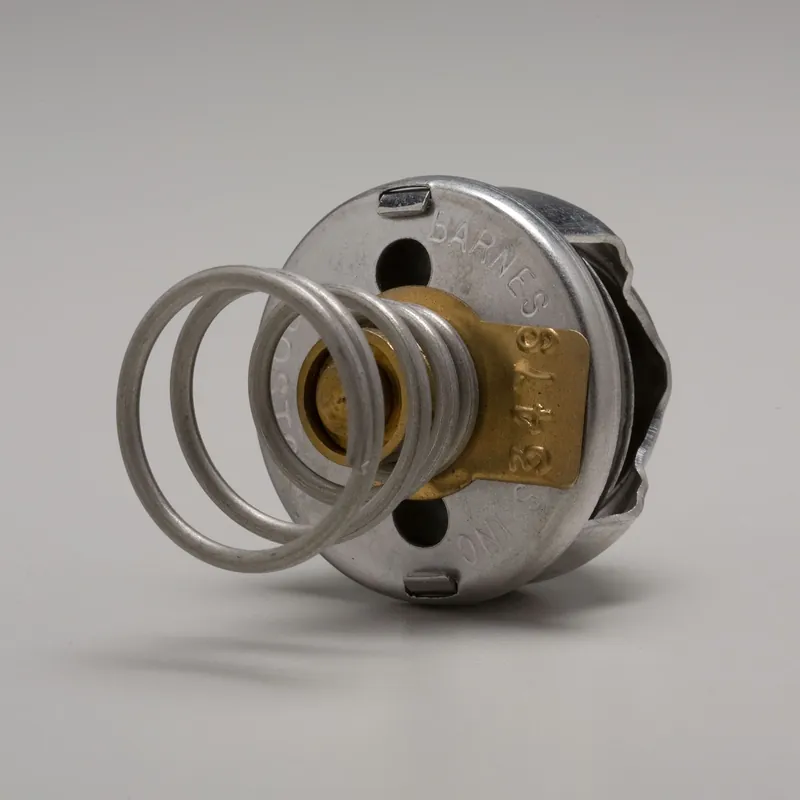

Affordable Barnes & Jones 3479 – Cage Unit for Warren Webster Traps

The Barnes & Jones 3479 is a cage unit designed for Warren Webster 3/4 0026 F&T traps. This unit replaces the existing thermostat and seat, ensuring a reliable sealing function. It features a heavy-duty thermostatic element and a protective stainless steel cage, calibrated for precise opening and closing. The design includes a cage protrusion that fits into the orifice of the trap, securing the unit in place. A high-tension spring on the cover helps maintain stability during operation.

The thermostatic element responds to steam, expanding and shutting the ball plunger against its seat to contain the steam until it condenses into liquid. As the liquid cools, the element contracts, allowing the condensate to drain, optimizing the functionality of the steam trap.

• Compatible with Warren Webster 3/4 0026 F&T traps
• Heavy-duty construction with stainless steel cage
• Easy replacement for existing thermostat and seat

Product Highlights

This cage unit is engineered for efficiency and durability, making it a reliable choice for steam trap maintenance.

Product Information

Standard Information

• Brand: Barnes & Jones
• MPN: 3479
• Manufacturer Repaired: Warren Webster

Technical Specifications

• Weight: 0.20 pounds
• Steam Trap Model Repaired: 026T, 0026T
• New Cover Required: No
